Al-ko make many of
the axles used on coachbuild motorhomes, caravans and trailers. We can
normally supply identical replacements for these from the information on the
axle, vehicle details or by measurement.
Please email
the details and we will contact you with a price & delivery. |
| |
|
|
| Caravans |
|
|
| The information required to replace
a caravan axle is as follows: |
| 1) All
details on the identification plate in the centre of the axle. |
| 2) The
Caravan make, model and year (if possible) |

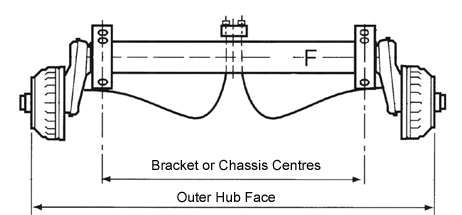

| 3) The outside chassis width and the outer hub
face measurements, please see the diagram below for details. |
| 4) The
number of wheel studs or wheel bolts and the
PCD of the hub. |
| It is likely that only the
information on the ID plate is required but if the ID plate is unreadable,
damaged or missing then items 2), 3) & 4) are essential. |
| |
| Coachbuilt
Motorhomes & other vehicles with Al-ko chassis conversions. |
| The information required to replace
a motorhome axle is as follows: |
| 1) The vehicle make, year & chassis
number. |
| |
|
|
| |
|
|
Trailers with
special Axles
(those with mounting brackets different than the pictures shown on
Al-ko axles page) |
| The information required to replace
a motorhome axle is as follows: |
| 1) All
the details on the identification plate in the centre of the axle |
| 2) The
trailer make |
| 3) The mounting bracket centres and the outer
hub face measurements please see the diagram below. |
| 4) The
number of wheel studs or wheel bolts and the
PCD of the hub. |
| |
| It is likely that only the
information on the ID plate is required but if the ID plate is unreadable,
damaged or missing then items 2), 3) & 4) are essential. |
| |
| Brackets will vary
in design & size on 'special' axles. |
 |
